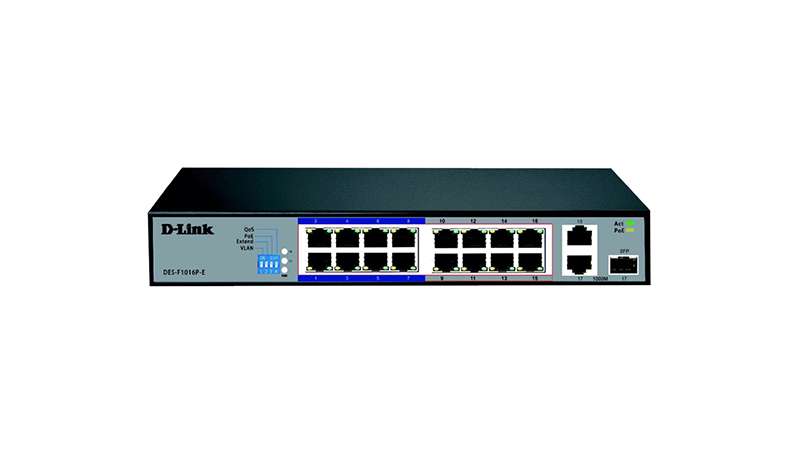

D-Link DES-F1016P-E 16 Ports Fast Ethernet POE switch

D-Link DES-F1016P-E 16 Ports Fast Ethernet POE switch designed for small and medium-sized businesses, as well as home offices. It offers a cost-effective solution for expanding network capacity and delivering power to PoE-enabled devices.

Key Features of the D-Link DES-F1016P-E 16 Ports Fast Ethernet POE switch

• Ethernet Ports: 16 x 10/100 Mbps Fast Ethernet PoE ports, providing wired connectivity and power to PoE-capable devices such as IP cameras, wireless access points, and VoIP phones.
• 16 10/10OMbps Fast Ethernet ports
•  150 watts available for PoE
•  Flow control for protection against data loss
•  Maximum distance of 250
• PoE Support: The switch supports IEEE 802.3af (PoE) and IEEE 802.3at  standards, allowing users to easily connect and supply power to PoE-capable devices.
• PoE Budget: The DES-F1016P-E has a total PoE budget of 246.4W, enabling it to power multiple PoE-enabled devices depending on their power requirements.
• Plug-and-Play: Easy setup with no configuration or software required, allowing for seamless integration into existing network infrastructure.
• Auto-MDI/MDIX: Automatically adjusts for straight-through or crossover cables, simplifying installation and reducing the need for additional equipment.
• Auto-Negotiation: Each port supports auto-negotiation, which intelligently adjusts to the highest supported transfer rate between the switch and the connected device (up to 100 Mbps).
• Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet, reducing power consumption during periods of low network traffic or idle ports.
• Non-blocking Architecture: Provides full wire-speed switching and a high bandwidth capacity, ensuring smooth network performance.
• LED Indicators: Port status and activity indicators provide real-time information on the network status and connectivity.
• Dimensions (W x D x H): 280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inches).
• Weight: 1.9 kg (4.19 lbs).
• Housing: Metal enclosure.
• Power Input: 100-240VAC, 50/60Hz, internal power supply.
• Operating Temperature: 0 to 40°C (32 to 104°F).
• Storage Temperature: -10 to 70°C (14 to 158°F).
• Operating Humidity: 10% to 90% non-condensing.
• Storage Humidity: 5% to 95% non-condensing.
• Certifications: FCC, CE, IC, VCCI, C-Tick, BSMI, CCC, cUL, CB, LVD, RoHS.

The D-Link DES-F1016P-E is an ideal choice for businesses and home offices looking to expand their network capacity with Fast Ethernet and PoE support. Its plug-and-play functionality, energy efficiency, and easy-to-read LED indicators make it a user-friendly and reliable networking solution.
