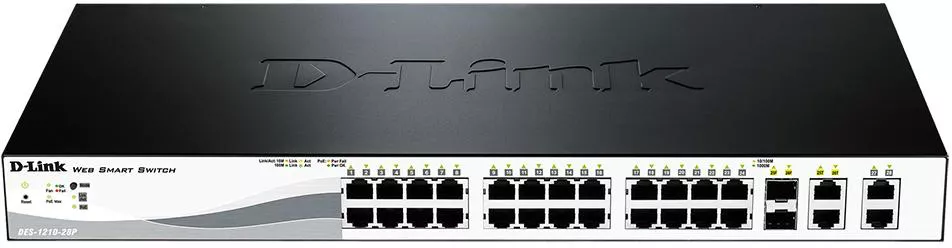

D-Link 24 28 Port Fast Ethernet Managed PoE+ Switch (DES-1210-28P) from D-Link, designed for small to medium-sized businesses. This switch combines the functionality of a high-performance Ethernet switch with PoE capabilities to power devices such as IP cameras, access points, and VoIP phones.

Features and Specifications of the D-Link 24 28 Port Fast Ethernet Managed PoE+ Switch (DES-1210-28P)

• Ports:
  • 24x 10/100BASE-TX PoE ports for Fast Ethernet connectivity and power delivery
  • 2x 10/100/1000BASE-T ports for Gigabit Ethernet connectivity
  • 2x 10/100/1000BASE-T/SFP (Small Form-factor Pluggable) Combo ports for increased network scalability with both copper and fiber uplinks
• PoE Power Budget: 193W, allowing you to power multiple PoE devices through the switch
• Quality of Service (QoS) Support:
  • IEEE 802.1p QoS for traffic prioritization
  • CoS (Class of Service) based on DSCP (Differentiated Services Code Point), ToS (Type of Service), TCP, UDP, and IPv6 traffic classes
• Bandwidth Control: Allows administrators to manage the network’s bandwidth usage, preventing bottlenecks and ensuring optimal performance
• Auto Surveillance VLAN: Automatically identifies and prioritizes IP surveillance traffic for seamless integration with IP cameras and other surveillance equipment
• Auto Voice VLAN: Automatically identifies and prioritizes VoIP traffic for improved voice quality and reduced network congestion
• Cable Diagnostics: This feature allows you to troubleshoot cable issues, such as detecting cable length, identifying cable faults, and checking the quality of copper cabling
• Management Features:
  • Web-based management interface for easy configuration and monitoring
  • SNMP (Simple Network Management Protocol) support for integration with network management systems
• Advanced Security Features:
  • Access Control Lists (ACLs)
  • Port Security
  • D-Link Safeguard Engine to protect the network from threats and unauthorized access
• Green Ethernet Technology: Energy-saving features such as energy-efficient Ethernet (EEE), port shutoff, and cable length detection to reduce power consumption and operating costs

Overall, the D-Link DES-1210-28P is a versatile and efficient solution for small to medium-sized businesses that require a combination of PoE capabilities, Fast Ethernet connectivity, and advanced network management features.
