Designing Reliable PoE Networks with D-Link (2025 Buyer’s Guide)

Power over Ethernet (PoE) has become the default way to deploy IP cameras, Wi-Fi access points, and VoIP phones—one cable delivers both data and power, simplifying installations and lowering total cost of ownership. D-Link’s portfolio spans simple plug-and-play PoE switches through to smart managed models with VLANs, QoS, and fiber uplinks. This guide explains how to choose, then maps popular models to the jobs they do best.

What actually matters when you choose a PoE switch

1) PoE standard & per-port power

• 802.3af (PoE) powers light devices (up to ~15.4 W per port).
• 802.3at (PoE+) is typical for dual-band APs and PTZ cameras (up to ~30 W per port).
  Pick the class your endpoints need; mixing is fine as long as the switch supports the higher class required anywhere in your build.

2) Total PoE budget
Add up the maximum draw of all powered devices and include 20–30% headroom for cold starts, firmware spikes, and future growth.

3) Ports, uplinks, and fiber
Count powered access ports separately from uplinks. For stacked floors or outdoor runs, SFP/SFP+ uplinks keep your aggregation clean and scalable.

4) Management level

• Unmanaged: set-and-forget for small sites and pure CCTV.
• Smart/Managed: VLANs, QoS, IGMP Snooping, port isolation, and monitoring for multi-tenant LANs and voice/Wi-Fi convergence.

5) Long-reach PoE
Many “F-series” D-Link switches support an Extend/Long-Range mode up to 250 m—very handy for edge CCTV drops that exceed standard 100 m runs.

6) Environment & reliability
Check fan noise, power input, surge protection, and rack depth. For outdoor or electrically noisy sites, use solid-copper cable, proper earthing, and surge protection.

Portfolio at a glance (mapped to real-world jobs)

Compact & affordable edge (home, shop, small office)

• DGS-F1006P-E — 6-port with 4×PoE + 2 uplinks; ideal for a handful of cameras or APs, tidy wall-mount builds, and small MDFs.
• DGS-1100-08P — Smart 8-port PoE for sites that need VLANs/QoS without the overhead of full Layer-3 gear.
• DGS-F1100-10PS — 8×PoE plus SFP uplinks in a quiet, compact chassis; great for front-of-house racks.

Surveillance-heavy sites (long runs, many cameras)

• DGS-F1010P-E — 10-port Gigabit (8×PoE + 2 uplinks) with long-reach mode; a popular “small NVR closet” pick.
• DES-F1016P-E — 16×PoE Fast Ethernet with 250 m long-range—purpose-built for distributed CCTV where throughput needs are modest but reach matters.
• DGS-F1026P — 24×PoE Gigabit with SFP uplinks; a cost-effective workhorse for multi-floor camera networks.

Growing SMB access (smart/managed with fiber)

• DGS-1210-10P — 8×PoE edge switch with combo uplinks; easy Web Smart management for converged AP/voice access.
• DGS-1210-28P — 24×PoE plus extra uplinks; a common access/aggregation layer for small campuses.

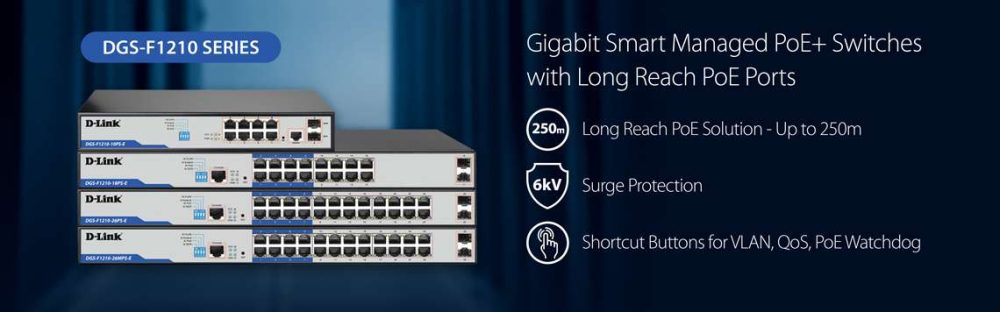

• DGS-F1210-18PS — 16×PoE + 2×SFP with long-reach support; neat fit for medium CCTV or mixed AP/camera floors.
• DGS-F1210-26PS-E — 24×PoE + 2×SFP managed switch for larger IDF closets.

High-density & faster uplinks (large AP/voice fabrics)

• DGS-1210-52MP — 48×PoE with ample shared budget; simplifies high-density AP or phone deployments on a single access layer.
• DGS-1250-52XMP — 48×PoE GbE with 4×10G SFP+ uplinks; step up when you need more backhaul and richer feature sets.

Tip: Many models above ship in multiple hardware revisions and PoE budget options. When finalizing, verify PoE budget (W) and per-port class on the specific product page.

A quick sizing workflow (that prevents painful surprises)

1. List endpoints: e.g., 12 × 802.3af domes (8 W max), 4 × 802.3at PTZ (25 W max), 4 × dual-band APs (17 W max), 2 × SIP phones (7 W max).
2. Calculate power: (12×8) + (4×25) + (4×17) + (2×7) = 96 + 100 + 68 + 14 = 278 W.
3. Add headroom: 278 W × 1.25 ≈ 348 W PoE budget target.
4. Pick the model: ensure the switch’s total PoE budget ≥ 348 W and that enough ports can deliver the right class (PoE vs PoE+).
5. Check uplinks: if you expect >1 Gbit aggregate traffic, choose models with SFP/SFP+ and bond/aggregate (LACP) as needed.

Proven design patterns

• CCTV-first edge: DGS-F1026P (access) → fiber to a non-PoE core. Enable long-range on the first block of ports for distant cameras; isolate camera VLAN; enable IGMP Snooping for NVR multicast.
• Wi-Fi access floors: DGS-1210-28P at the edge; trunk VLANs to the distribution/core; enable LLDP-MED for voice phones; use QoS (DSCP-aware) for voice and real-time traffic.
• Mixed campus: DGS-1250-52XMP at aggregation (10G SFP+ uplinks), DGS-1210-10P/28P or F-series at the edge. Use LACP to dual-home IDFs and Rapid STP for loop protection.

Cabling & long-reach notes

• Use solid-copper Cat6 (not CCA) for stability and lower voltage drop.
• Long-range/Extend modes (up to ~250 m) typically trade speed for distance and may restrict PoE class on those ports—plan your highest-draw devices on standard-distance runs.
• For outdoor cameras, specify shielded cable, surge protection, and proper bonding/earthing.

Model checklist (from this guide)

DGS-F1006P-E • DGS-1100-08P • DGS-F1100-10PS • DGS-F1010P-E • DES-F1016P-E • DGS-F1210-26PS-E • DGS-F1210-18PS • DGS-F1026P • DGS-1210-28P • DGS-1210-10P • DGS-1210-52MP • DGS-1250-52XMP

Final word

Choose the management tier that matches your network complexity, then size PoE budget and uplinks with headroom. If your runs are long or your edge is camera-heavy, the D-Link F-series gives you 250 m options without jumping to extender hardware; for larger LANs, the DGS-1210 and DGS-1250 families add the smart features and uplink bandwidth that keep growth painless.
